Underfloor Heating with Laminate Flooring
- 27 Apr 2026
- Sam Jackson
Laminate flooring and underfloor heating are a great match for modern family homes. Together, they give you warmth underfoot, a clean finish, and a price tag that beats solid wood or stone. Knowing how the two work together helps you get the best from your installation, whether you're renovating or building from scratch.
"Laminate over underfloor heating is one of those combinations that gets a lot of questions. In my experience, it works very reliably when you use the right product thickness and keep an eye on floor temperature. The problems tend to come from rushing the installation or skipping the acclimation stage, not from the materials themselves."
Paul Humphries
Managing Director, Best4Flooring
Why Laminate Works Well with Underfloor Heating
Laminate is made from compressed high-density fibreboard. That dense core conducts heat well, so warmth travels efficiently from the heating system below straight up into the room. In comparison to solid wood, which tends to shift as temperatures rise and fall, laminate barely moves, which makes it one of the most stable choices over a heating system.
Its layered construction also helps. The tough wear layer on top protects the design layer underneath. Beneath that, the high-density fibreboard core provides the structural support. This keeps the floor stable through daily heating and cooling cycles.
Other reasons to love laminate are that it's hard-wearing, low-maintenance, and comes in a wide range of wood and stone-effect finishes. It works particularly well in hallways, living rooms, kitchens, and open-plan spaces. A popular choice for allergy sufferers, as there are no fibres to trap dust.
What about Energy Efficiency?
Underfloor heating spreads warmth evenly across the entire floor surface. Rooms feel comfortable at slightly lower air temperatures than with radiators, which cuts energy use over a full heating season. Industry estimates suggest savings of up to 35% compared to conventional radiators.
Types of Underfloor Heating System
There are two main types of underfloor heating systems used in the UK.

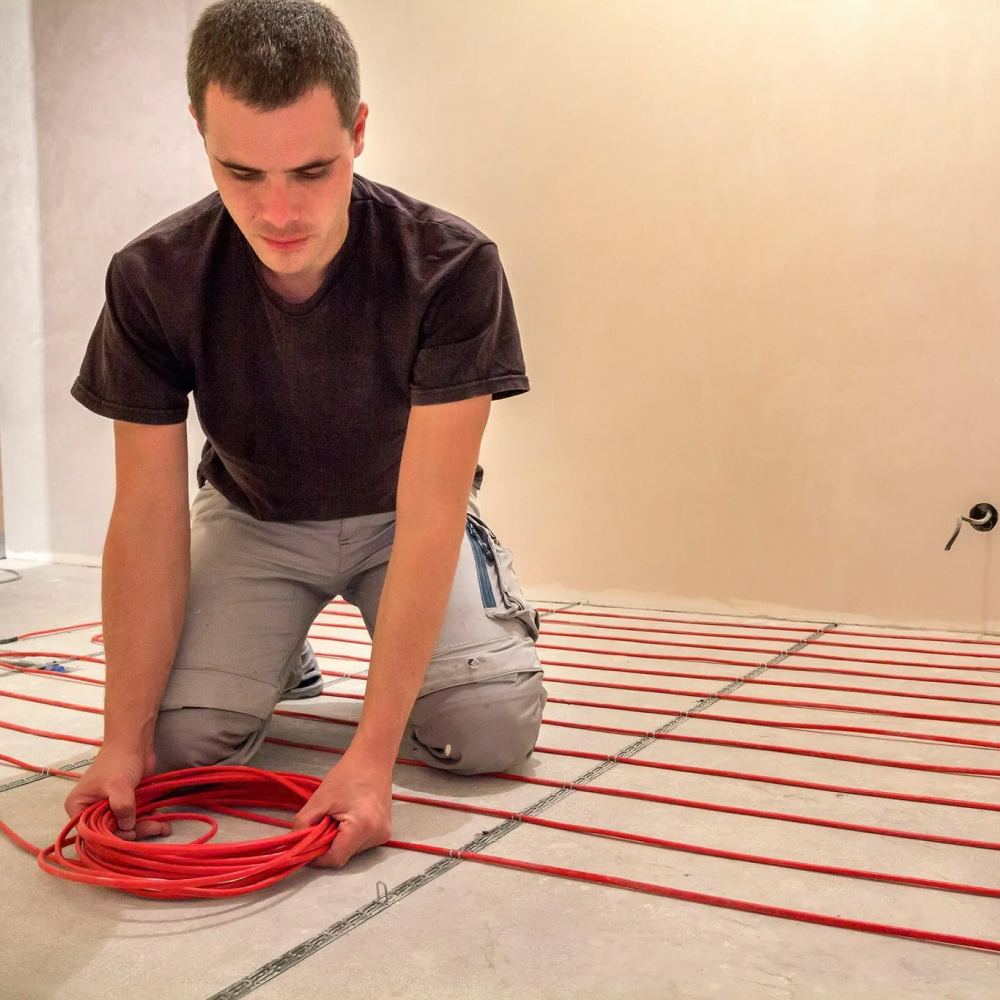

Electric Systems
Electric underfloor heating relies on heating cables or a foil heater mat fitted beneath the floor. Foil heaters are thinner and faster to fit than pipe-based systems, so they're a popular choice when retrofitting an existing room.
Electric systems warm up quickly, often reaching the right temperature within minutes. The underfloor heating foil format adds very little height to the floor, usually just 3 to 4 millimetres. That makes it ideal for renovations where you need to keep the existing floor height. There's also a second foil heater format that uses conductive mats, which can be laid directly beneath laminate with the right underlay.

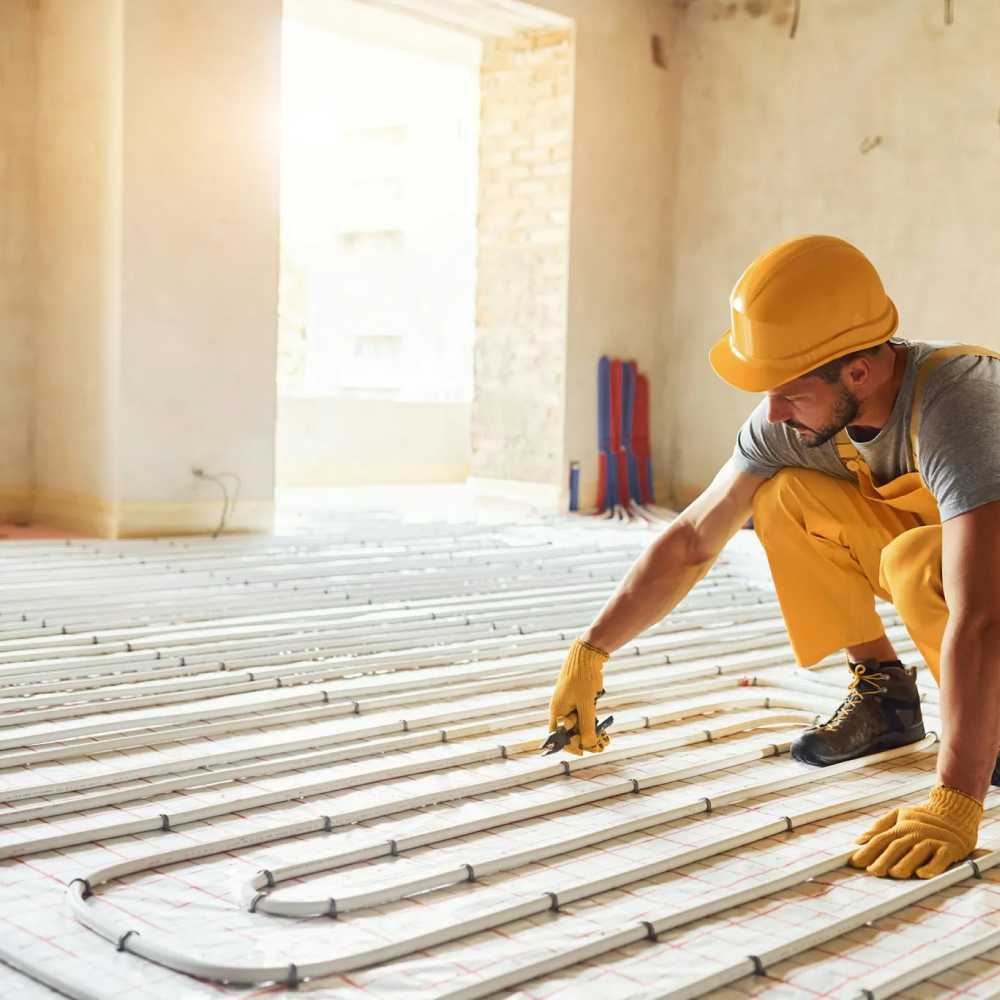

Water-Based Systems
Water-based systems push warm water through pipes laid into a screed or insulated panels. They suit new builds and larger renovations well, where the floor build-up can be designed in from the beginning. The system runs at relatively low flow temperatures, usually between 35 and 45 degrees Celsius. Provided the floor surface temperature is kept at or below 27°C (typically managed via a thermostat with a floor sensor), laminate handles this comfortably.
Heat builds gradually and spreads evenly, which reduces the risk of sudden temperature spikes that could stress the floor. One thing to bear in mind: water-based systems can raise floor height significantly, sometimes by up to 15 centimetres once the screed is included. This is something to plan for early on.

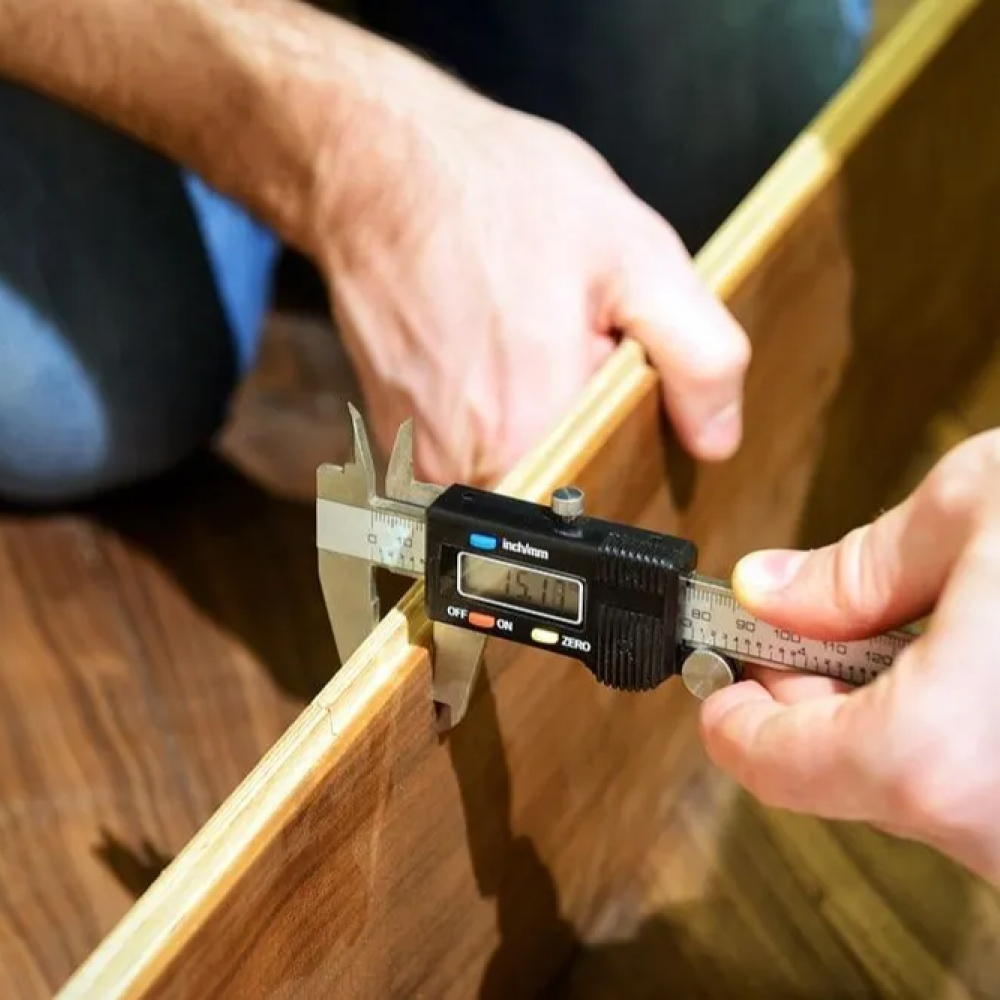

Laminate Thickness for Underfloor Heating
The thickness of your laminate directly affects how efficiently heat reaches the room. Thicker boards resist heat transfer, which means the heating system has to work harder.
For underfloor heating, the recommended laminate thickness is between 8 mm and 12 mm. Boards in that range strike a good balance between durability and efficient heat transfer. Go beyond 12 mm and heat transfer slows noticeably. The 8 to 10 mm range tends to be the most efficient.
Boards over 18 mm aren't recommended for use over any underfloor heating system. Thinner boards, around 8 mm, let heat pass through more quickly. They feel a little lighter underfoot, but they perform well thermally.
Always check the manufacturer's datasheet before you buy, or ask one of our team. Good quality laminate products will clearly state whether they're approved for use over underfloor heating, and many will specify a maximum thickness.
Temperature Limits for Laminate Flooring
The floor surface temperature for laminate flooring should never exceed 27 degrees Celsius. Some manufacturers allow up to approximately 29 degrees Celsius, but this varies by product.
Exceeding these limits puts the floor at risk. Higher temperatures can cause the core to warp, the design layer to blister, and the click-lock joints to separate. The melting point of laminate is far higher than these limits, but the structural integrity of the board begins to suffer well before that point.
A thermostat with a floor temperature sensor will monitor the actual surface temperature and cut the heating system output before the floor reaches its limit. This protects your investment and keeps the system running efficiently.
Choosing the Right Underlay
Underlay plays a big role in how well a laminate underfloor heating setup performs. The wrong underlay can insulate the floor from the heat below, making the whole system far less efficient.
Tog Ratings Explained
Thermal resistance in underlay is measured in togs. A lower tog rating means less resistance and better heat transfer. For use over underfloor heating, choose an underlay with a tog rating of 1.0 or below. Ratings between 0.3 and 0.4 are considered optimal. The combined thermal resistance (R-value) of your underlay and laminate flooring together should not exceed 0.15 m²K/W. Tog and R-value both measure how much a material resists heat flow. Staying within this combined limit ensures the heating system can warm the room effectively without being forced to run at higher temperatures.
What to Look For
A good underlay for laminate over underfloor heating should:
- Have a low tog rating, ideally 0.5 or below
- Include an integrated damp-proof membrane if installed over concrete
- Be no thicker than 3 to 6 mm
- Be compatible with both the laminate product and the heating system
See our guide on how to choose the right underlay for more advice. Avoid cork underlay for this application. Cork has a naturally high tog rating and will significantly reduce heat transfer. It also requires a separate damp proof membrane over concrete, adding cost and complexity.

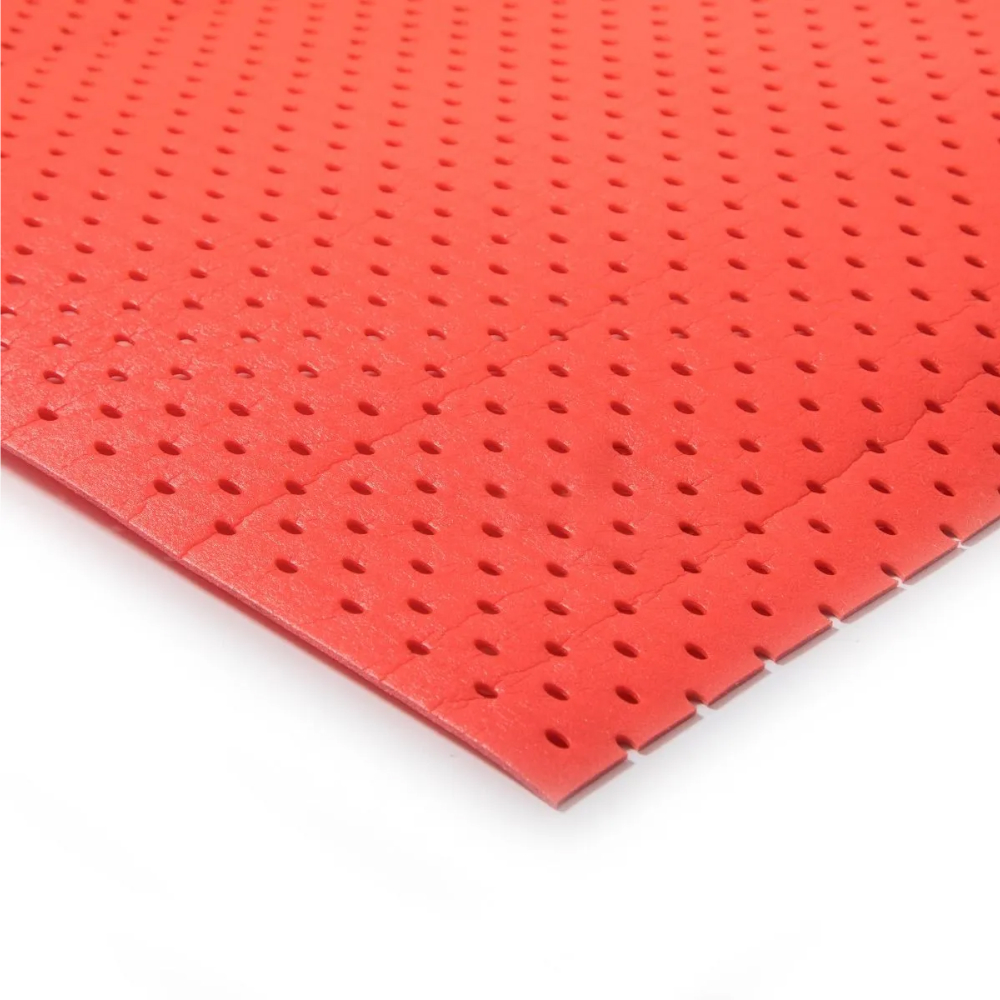

The Thermo ProX is specifically engineered for UFH systems, with a dense foam core and heat transfer air pockets that improve heating efficiency rather than blocking it. At just 1.8mm thick, it keeps your total floor build-up well within the recommended limit.
What You Need to Know about Installation
Preparing the Subfloor
Your subfloor must be clean, flat, and dry before installation begins. Dust and debris can affect the underlay and block heat from reaching the room. The floor should not vary by more than 4 mm per linear metre, as any bumps or dips beyond this put pressure on the click-lock joints and can cause the boards to lift over time.
For concrete subfloors, tape a sheet of polyethene film to the surface for 24 hours. If condensation forms underneath, the floor needs more drying time before you can proceed. Screeds over water-based systems also need a full preheating programme before any laminate goes down. Cement-based screeds typically need up to three weeks to rest, followed by a gradual heat ramp-up. Calcium sulphate screeds need roughly one week of rest before the same process, to clear out residual moisture.
Acclimating the Boards
Leave laminate boards in their unopened packaging inside the installation room for 48 to 72 hours before laying. See our full acclimation guidance for more details. Keep the underfloor heating off during this period, room temperature should sit between 18-23°C, with humidity between 40-60%.
The Installation Process
Now for the exciting part! Floating installation is the standard method for laminate over underfloor heating. This is where the boards click together over the underlay without being fixed to the subfloor, which lets the floor move slightly as it warms and cools. Leave an expansion gap of at least 15 mm between the laminate and every wall or fixed object. Don't worry, skirting boards or beading cover the gap once fitting is complete. For a full walkthrough, see our laminate installation guide.
For some commercial settings, adhesive installation is possible, but any adhesive must be rated for use with underfloor heating. Standard wood adhesives can break down under repeated heat cycles. Check suitability with your supplier before fixing.
Commissioning the System
Once installation is complete, increase the thermostat by around 5°C per day until you reach your target temperature. This gives the boards time to expand evenly and avoids thermal shock. Repeat this process at the start of every heating season. Turning the system on at full temperature after a summer break is one of the most common causes of laminate warping.
Humidity and Moisture Management
Keep indoor relative humidity between 30-60% all year round. Below 30%, boards can shrink, and gaps may open up; above 60%, the laminate can swell. Try to run the system at steady temperatures rather than large swings. Repeated expansion and contraction puts stress on the joints over time, and consistent warmth is also more energy efficient.

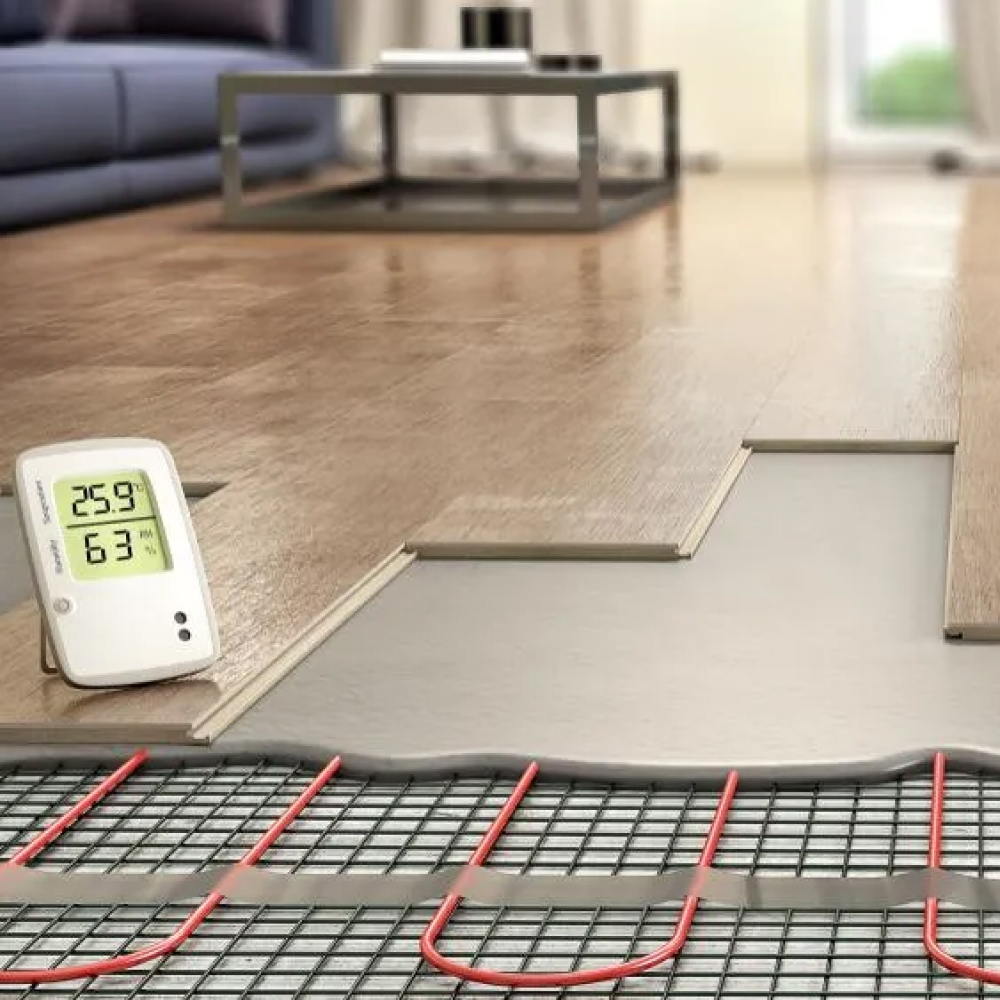

Before You Buy
- Confirm the laminate is manufacturer-approved for underfloor heating
- Choose a board thickness between 8 mm and 12 mm
- Pick an underlay with a tog rating of 1.0 or below, ideally below 0.5.
- Check the combined thermal resistance stays under 0.15 m²K/W
- Plan for a 15 mm expansion gap around every edge and fixed object
- Budget for a thermostat with a floor temperature sensor
- Allow 48 to 72 hours for board acclimation before fitting
- Test the subfloor for moisture if laying over concrete
Frequently Asked Questions
What flooring is not suitable for underfloor heating?
Solid hardwood is generally not recommended, as it expands and contracts significantly with heat, causing cupping and warping. Thick cork flooring is also unsuitable due to high thermal resistance. Our best flooring for underfloor heating guide covers compatible options in full.
Where should you not use laminate flooring?
Standard laminate is not suited to wet rooms, saunas, or areas with frequent standing water. Unheated garages or outbuildings with extreme temperature swings are also poor choices. In bathrooms, LVT or tiles are more practical alternatives. If you need laminate in a kitchen or hallway where splashes are likely, a water resistant laminate is a better choice than standard boards.
What thickness laminate flooring for underfloor heating?
Between 8 mm and 12 mm is recommended. This range balances durability with efficient heat transfer. Boards thicker than 18 mm should not be used. Always confirm the product is manufacturer-approved for underfloor heating. See our laminate thickness guide for more detail.
What temperature can laminate flooring withstand?
The maximum floor surface temperature is typically 27 degrees Celsius, with some products rated to around 29 degrees. Going higher risks warping and surface damage. A thermostat with a floor sensor lets you monitor and control surface temperature automatically.
Do I need a special underlay for laminate over underfloor heating?
Yes. Standard underlay can be too thermally resistant for use with underfloor heating. Choose an underlay with a tog rating of 1.0 or below, and make sure it includes an integrated damp-proof membrane if being laid over concrete. The combined thermal resistance of board and underlay together should stay at or below 0.15 m²K/W. See our underlay guide for laminate flooring for compatible options.
