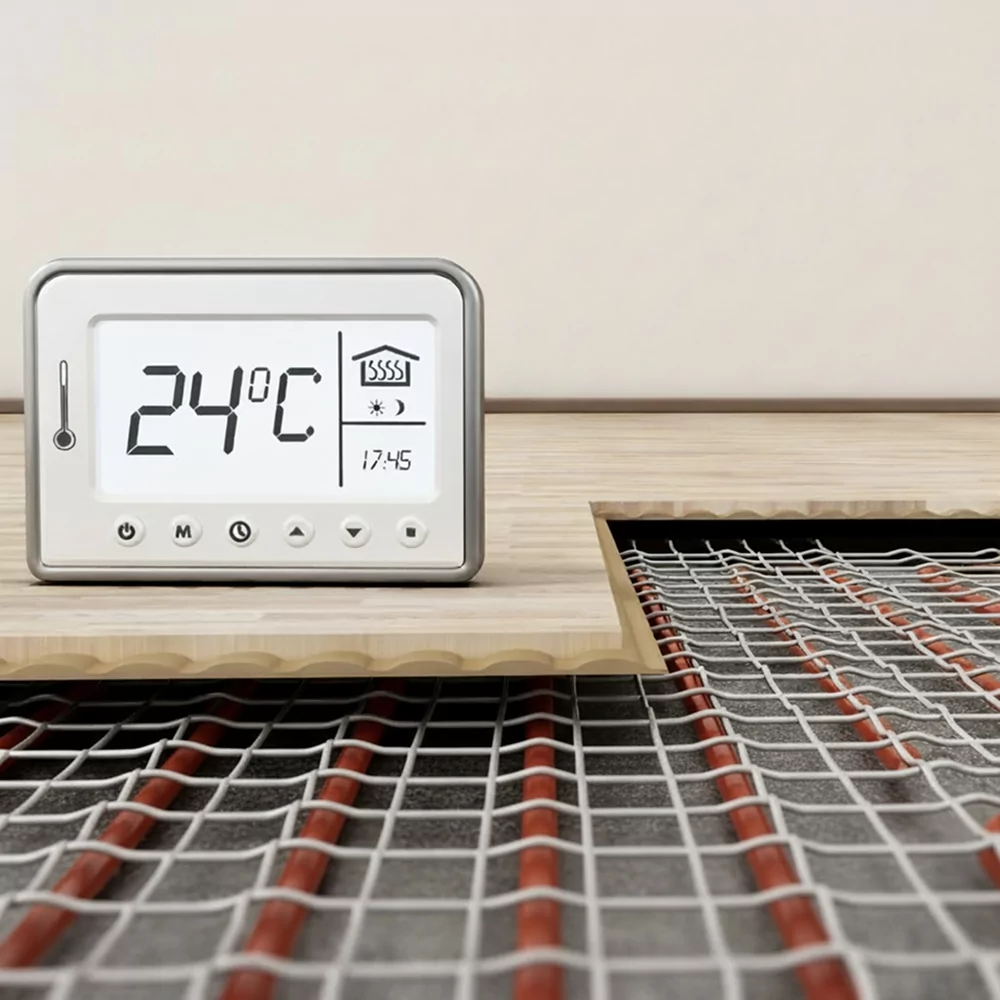

What is the Best Flooring for Underfloor Heating?
- 29 May 2026
- Sam Jackson

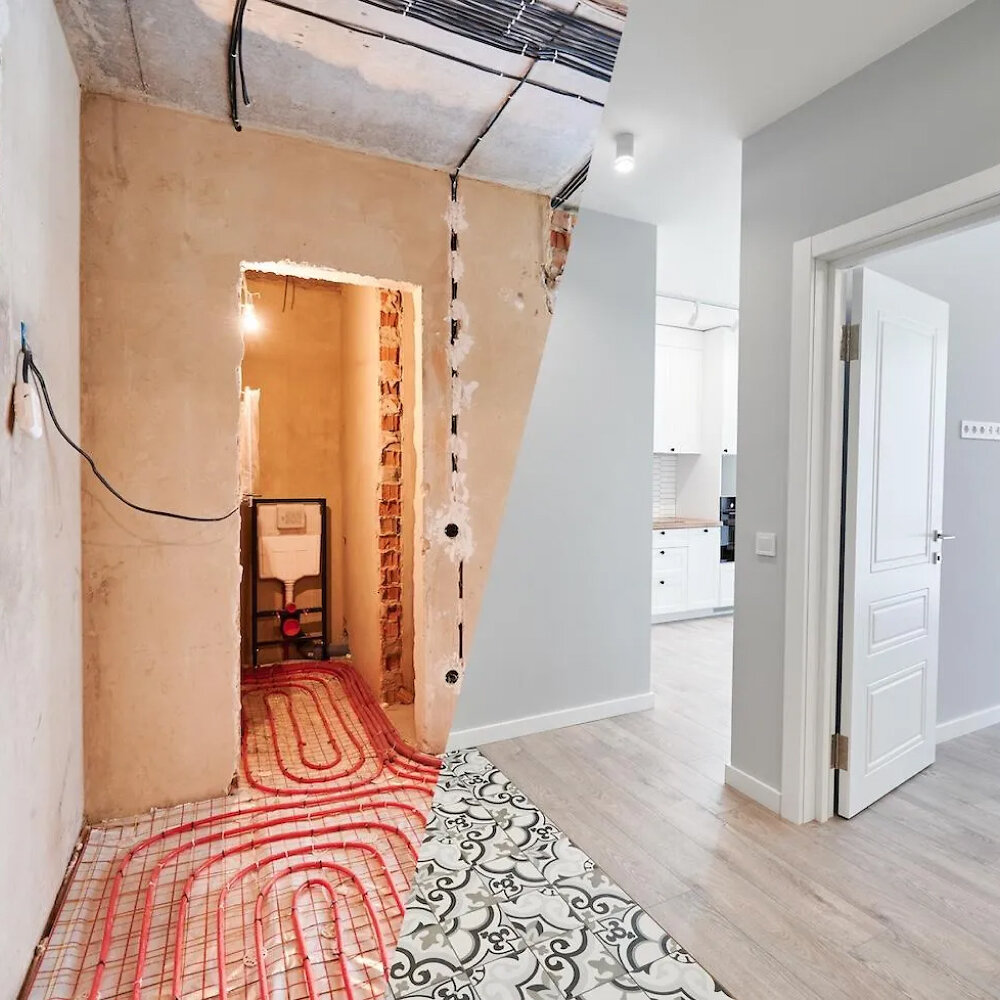

Underfloor heating has been warming floors for thousands of years. The Korean ondol, which drew smoke from a wood-burning hearth through passages beneath a masonry floor, dates back around 7,000 years, and the Greeks were using pillared-basement heating by 500 BCE. The Romans brought the hypocaust to Europe around 2,100 years ago, circulating heated air under raised stone floors in their bathhouses.
Today, underfloor heating helps us stay warm and cosy underneath a range of flooring surfaces, while typically using 25% less energy than traditional radiators, and up to 40% less when paired with a heat pump.
The heating system itself is only half the job; the floor construction you choose to lay on top decides the overall efficiency. Pick the wrong floor coverings and even the best underfloor heating system underperforms. Choose the right flooring and you'll benefit from an even, gentle heat that lasts for hours after underfloor heating switches off.
This guide walks through how to get that floor decision right: the types of heating system, the golden rules for any floor over heat and the best flooring for underfloor heating in each room in your home.
Wet or electric underfloor heating, what's the difference?
There are two main types of heating system and the choice affects every floor covering decision that follows.

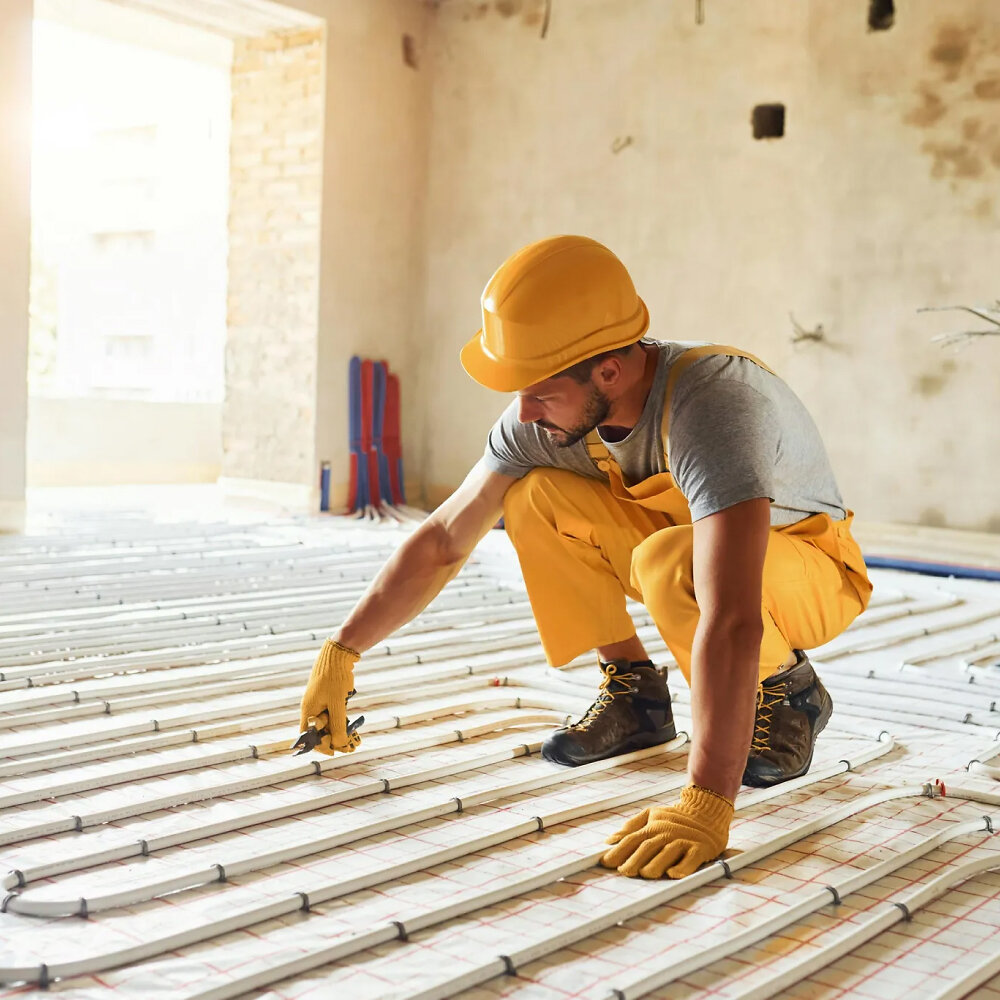

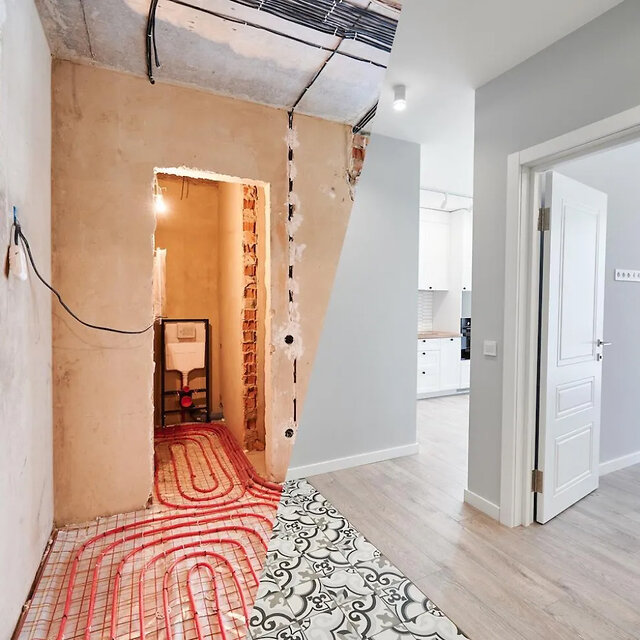

A wet heating system uses pipes filled with warm water, powered by a boiler or heat pump. The pipes sit in screed or clip into a low-profile panel, with spacing typically 200mm for a boiler-fed system and closer to 150mm for a heat pump. Flow temperature runs between 35°C and 55°C: far lower than a radiator, which is why wet underfloor heating pairs well with low-flow sources like a heat pump.
A wet setup is usually the best choice for a whole-property new build or major renovation. A traditional sand and cement screed adds 65mm to 100mm of build-up and needs curing time; a modern liquid anhydrite screed can bring total depth down to 35mm to 50mm inclusive of pipe.

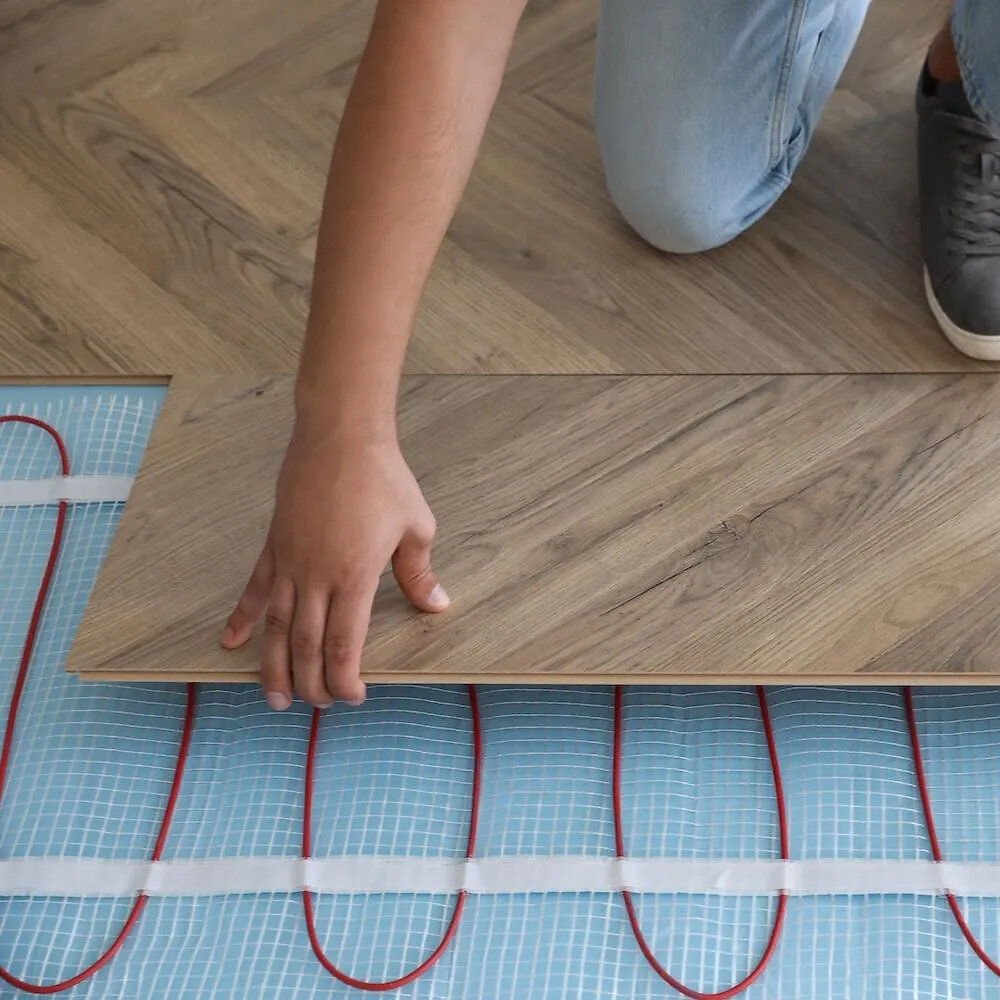

An electric heating system uses thin heating wires placed under the floor, supplied as mats or loose cables. The build-up is thinner, often 3mm to 10mm, so electric underfloor heating is the retrofit favourite for a bathroom, en-suite, or upstairs bedrooms where you'd prefer not to lose any height. The running cost per unit of heat is higher, so fitters typically recommend electric for zonal use.
Response time differs too. Electric warms the floor fast because there's almost no thermal mass between the cable and the floor finish. Wet underfloor heating is slower to heat the floor but holds warmth longer. Zoning each space to its own thermostat is standard across modern underfloor heating.
The golden rules for any floor over underfloor heating
Here are our best tips for a floor that performs over an underfloor heating system:
- Most floor coverings are compatible. The exceptions are around carpet, which hinders heat transfer.
- Think heat transfer, not insulation. The floor must pass heat into the space, not trap heat. Thinner floor coverings let more heat through the floor.
- Keep the combined tog under 2.5. The floor plus underlay should be no more than 2.5 tog. Under 1.5 is ideal for a hard floor.
- Respect the 27°C surface cap. 27°C is the industry maximum for LVT flooring, laminate flooring, and engineered wood. 29°C is the ceiling for tile and stone.
- Acclimatise the floor 48 to 72 hours in the space where it's being installed with the heat off.
- Leave a 10-15mm gap around the room for wood, laminate, and LVT so the floor can move naturally with temperature changes.
- Use a damp-proof membrane over a wet system unless the screed already includes one.
The substrate flatness matters too. Most floor coverings need a completely flat surface: aim for SR2 or ±3mm over 2m. Preparation is particularly important for carpet and tile, where dips create air pockets that stop heat travelling evenly across the floor and cause cold patches.
Best flooring types for underfloor heating
The best flooring materials for underfloor heating share two traits: high thermal conductivity and low thermal resistance. That's why certain types of flooring come up again and again.
Luxury vinyl tile (LVT)
LVT is the best flooring for underfloor heating in most domestic spaces. The floor is water-resistant, expansion is low enough that the floor rarely shows movement, and at 2mm to 5mm thick with a rigid core, heat transfer through the floor is fast.
Thermal conductivity for LVT typically ranges from 0.15 to 0.25 W/m·K, depending on wear layer and core, ahead of laminate at 0.12 to 0.15 W/m·K and well ahead of carpet. That conductivity translates into usable heat output at the surface.

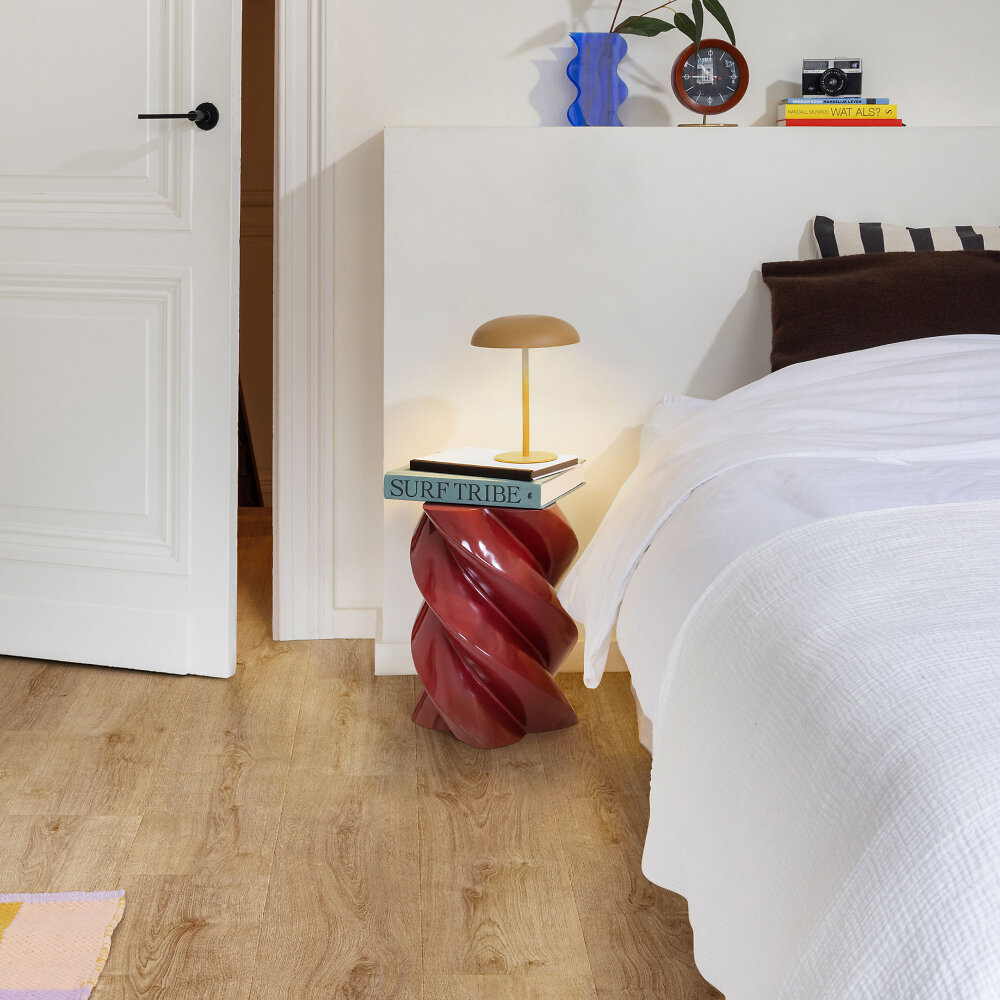

The Moduleo LayRed range is the easiest click-fit: compatible up to 27°C, and the pre-attached underlay is tog-rated, so you're not doing tog maths.
Laying Moduleo Roots as a glue-down gives the fastest heat response of any LVT format, because laying with glue removes any air gap between the floor and the subfloor.
Laminate
Laminate warms fast, suits most budgets, and handles heat well when installed inside the manufacturer's spec. Laminate is often the right floor for a retrofit bedroom or hallway. Modern laminate uses a high-density fibreboard (HDF) core reformulated to handle the heat cycling of underfloor heating without swelling at the joints.
The Quickstep Impressive Ultra range is the 12mm premium laminate, suitable for up to 27°C with a heat-rated underlay. Standard foam kills the efficient heat output of the floor by trapping warmth between the pipes and the laminate board, which ruins underfloor heating efficiency.
If maximising heat output is the priority, Berry Alloc laminate is well worth considering. Its slim 8mm profile allows warmth to move through the floor efficiently. Plus, every design is backed by a lifetime residential guarantee for added peace of mind.

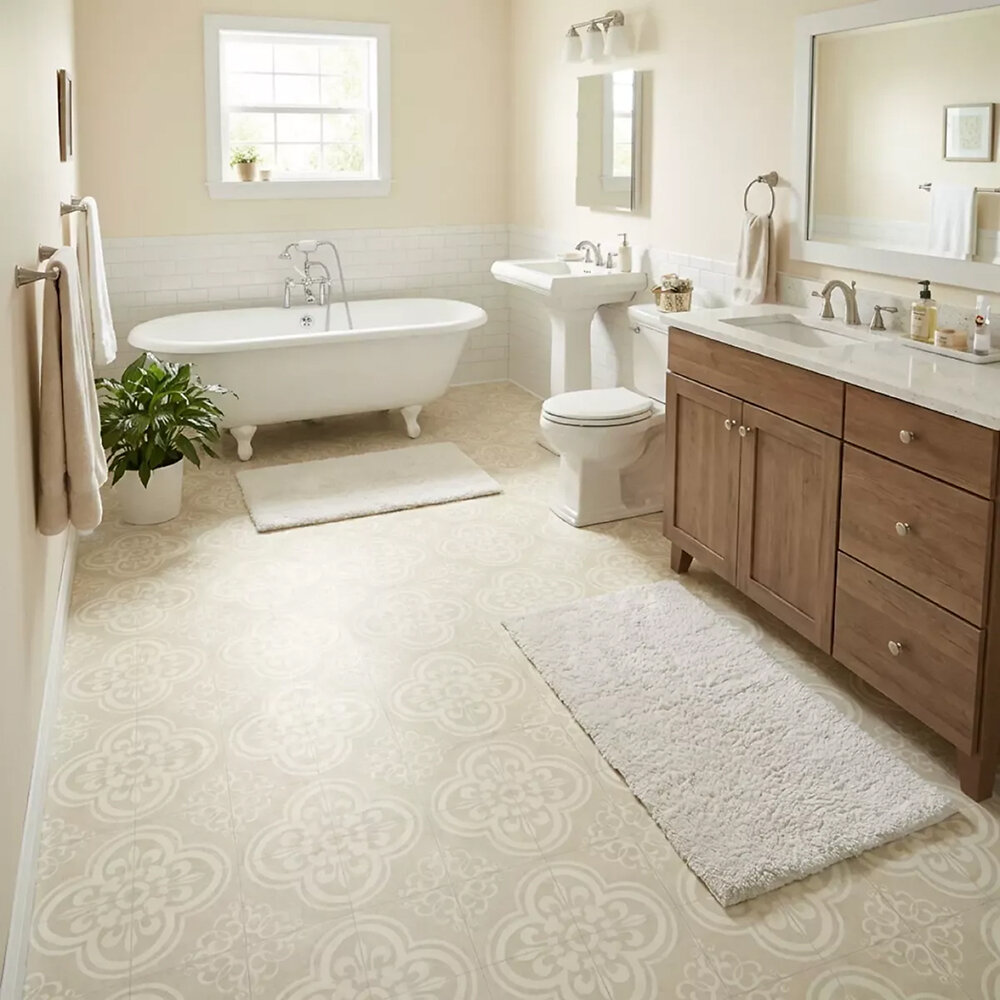

Sheet and cushioned vinyl
Sheet vinyl is the underrated floor for kitchens, utilities, and bathrooms. One piece, no seams to let moisture in, and a thin enough wear layer that heat transfer through the floor is genuinely good. It's also one of the cheapest water-resistant floor coverings for laying over an electric mat.
Our Cushioned Vinyl Flooring Sheet range features over 100 designs, starting at £6.99/m². Most sheets handle heat up to 27°C; the exact cap varies by range, so check the per-product spec.

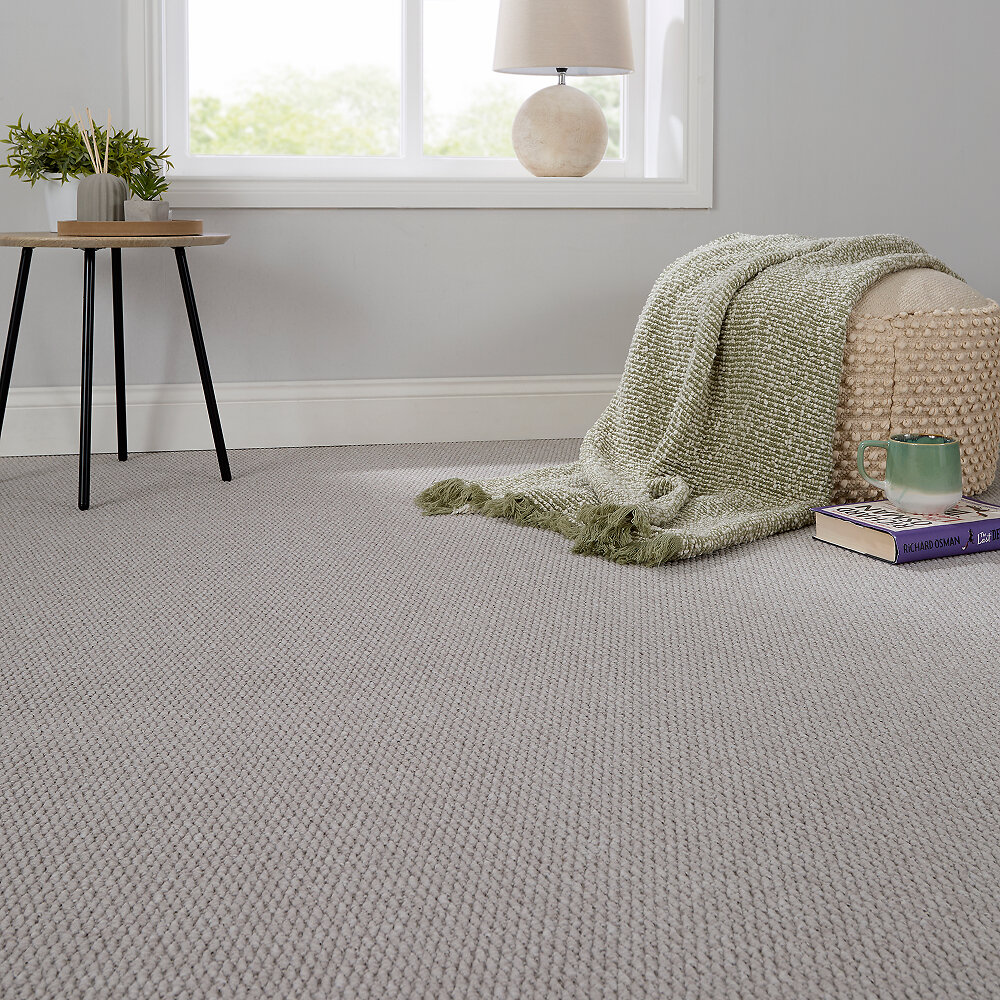

Carpet (with caution)
Carpet is suitable for use with underfloor heating, but the floor is the weakest performer. The pile and underlay insulate the floor, which is the opposite of what you want: the higher the carpet tog, the less heat underfloor heating can push into the space.
If carpet is non-negotiable for a bedroom, three conditions must be met. The pile needs to be thin, ideally a low loop rather than deep saxony, the tog rating has to stay under 2.5, and the underlay has to be heat-rated, rather than standard PU foam. An example is the Resilience Chalk Boucle, a textured berber with a thinner loop. Paired with a low-tog underlay, it works, but you'll get less heat coming through the floor than with LVT or vinyl.
Alternative floorings
Engineered wood flooring
Engineered wood is a timber option that handles heat. Cross-bonded construction resists the heat cycling that warps solid timber board, and reputable brands cap floor temperature at 27°C with a slow commissioning ramp.
Make sure to acclimatise the timber for 48 to 72 hours, keep the subfloor under 75% relative humidity and raise the heat no more than 5°C per day in the first week.
Solid wood flooring
Solid wooden flooring and underfloor heating do not get on. Solid timber boards expand, contract, cup, and gap with every heat cycle, and almost every manufacturer voids the warranty when the timber is installed over heat. If you want real timber over heat, engineered wood is the only option (but we would opt for a beautiful LVT replica!)
Tile and stone
Ceramic tile is often considered among the best flooring for underfloor heating: with excellent heat conductivity, a 29°C surface cap, and a finish that suits kitchens and bathrooms. Porcelain tile behaves in the same way. Natural stone is the outlier with one extra advantage: stone retains heat longer, so the floor stays warm even after the underfloor heating system switches off. However, installing tile can be more expensive and time-consuming than options like LVT or sheet vinyl.
Underlay for underfloor heating
Standard 8mm crumb rubber or thick foam traps heat between the pipes and the floor, killing the heat output. What underfloor heating needs is a heat-rated underlay, roughly 1.8mm thick with perforated air pockets, tog-rated 0.3 to 0.5.
Our default underlay for laminate and LVT is the Royale 1.8mm Thermo ProX. This gives a floor tog + underlay tog under 2.5, and the floor is safe.
Sheet vinyl makes things even simpler. Modern cushioned vinyl floors have a built-in foam or felt backing, so there's no need for a separate underlay at all. That means fewer components to buy, fewer installation decisions to make, and excellent heat transfer straight through the floor. For homeowners looking for a cost-effective, underfloor-heating-friendly option, sheet vinyl is hard to beat.
Installation essentials
Five key steps decide whether the floor performs once it's installed.
- Acclimatise 48 to 72 hours before laying the floor. Floor boards must sit flat in the space, packaging open, heat off. This applies to laminate and LVT installation, and following our essential guide to acclimating flooring helps avoid movement and gaps later.
- Leave a 10-15mm gap for expansion around the room for engineered wood, laminate, or LVT. Click floor installation needs space to float as the boards move with temperature changes.
- Fit a damp-proof membrane over a wet system before laying the floor, unless the screed already includes one. Moisture from cured screed can still pull laminate joints apart.
- Only lay flooring over a completely dry system. Floor coverings can go down immediately over an already-dry underfloor heating setup. A system with fresh screed or levelling compound has to dry and cure fully first: roughly 21 days on cementitious screed before the heat runs, and often six to eight weeks before the floor goes down, anhydrite takes longer. Test with a hygrometer: aim for under 75% RH for a floating installation, or under 65% RH for a glue-down.
- Increase the temperature slowly over the first week. Increase by no more than 5°C per day, starting around 15°C. Engineered wood benefits from a more cautious 2°C per day. Thermal shock warps boards and cracks tile in the early days after installation.

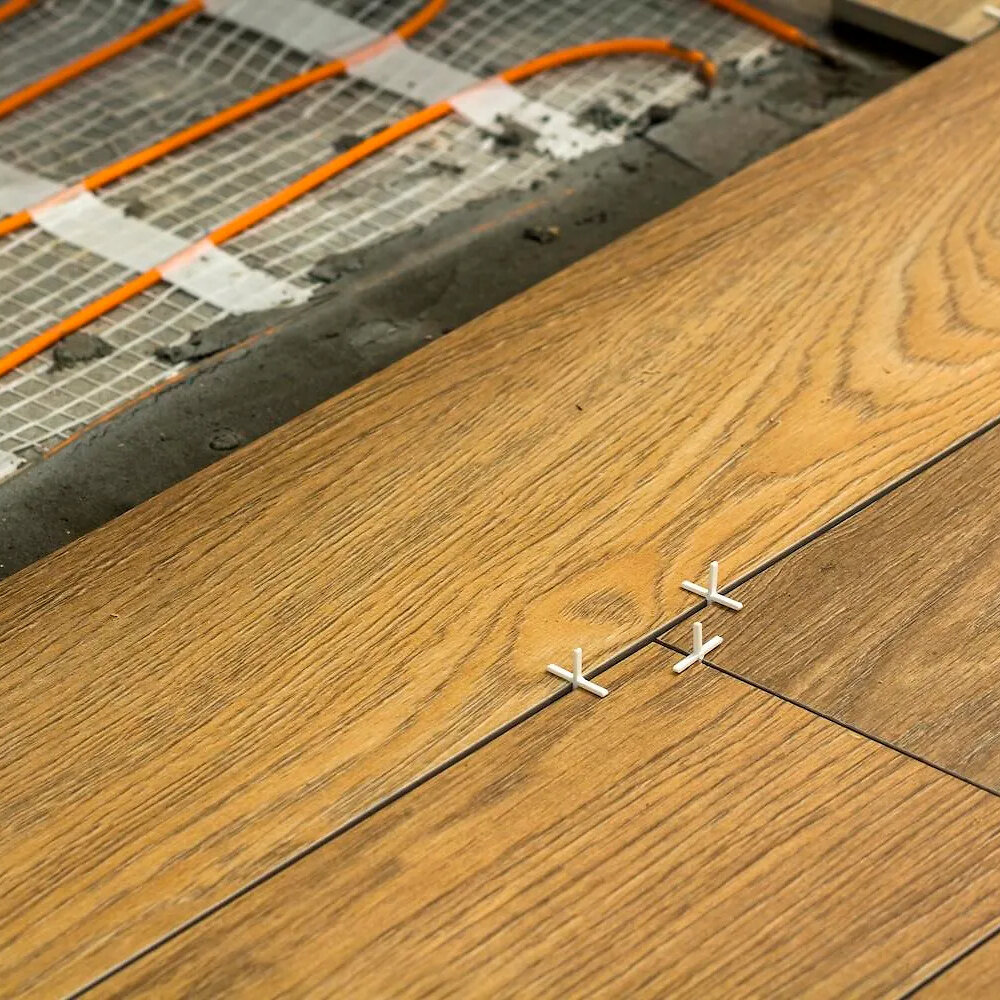

What can go wrong
Most underfloor heating problems trace back to a handful of common flooring mistakes:
- Over-temperature damage. Running LVT or laminate flooring above 27°C discolours the floor and splits the joints. Fit a floor sensor to keep check, not just a room sensor.
- Warping from rapid ramp-up. Switching the heat straight to full temperature can destroy a freshly installed floor.
- Damp pulling laminate flooring apart. Missed DPM, or laminate laid on wet screed. Joints swell, boards push up, click fails.
- Skipped expansion gap. The floor creaks as the boards expand with heat.
- Cold spots from heavy rugs. A thick rug traps heat on the floor and creates a hot spot underneath plus a cold patch across the space.
Running costs and efficiency
Three things drive the running cost of underfloor heating. A well-insulated subfloor stops heat escaping downwards through the floor. A thin, conductive floor delivers more heat output into the space for the same input. A sensible tog, under 1.5 for a hard floor, means the floor cycles less to hit target temperature.
Get these things right and underfloor heating outperforms radiators on cost-per-degree. Efficient delivery of heat output across the floor feels different: radiant, even across the space, not convecting off a single hot surface. Get one wrong and efficiency drops fast.
For more ways to lower energy bills through your floor choice, see our guide to the best flooring to keep your house warm.
Underfloor heating works brilliantly with the right flooring. The mistake we see most often is a thick flooring or underlay trapping all the heat before it reaches the room. Get the combined tog right, respect the temperature cap, and the rest takes care of itself.
Paul Humphries
Managing Director
FAQs
What is the best flooring for underfloor heating?
LVT is considered the best flooring for underfloor heating in most domestic spaces. LVT conducts heat quickly, handles moisture, and has a low expansion rate. Tile and stone deliver higher heat transfer and a higher cap at 29°C, but feel colder when the heating is off.
Is carpet suitable for underfloor heating?
Yes, but it's the weakest performer. The combined tog has to stay under 2.5, the pile needs to be thin, and the underlay has to be heat-rated. Expect lower heat output from the floor than LVT, tile, or laminate.
Is LVT or laminate better for underfloor heating?
Both floor coverings work well; see our full LVT vs laminate comparison for the head-to-head. LVT flooring responds faster to heat, handles moisture, and holds up well in kitchens. Laminate flooring warms fast and is cheaper per m². For a wet area, choose LVT, and for a dry room on a tight budget, laminate is a solid choice.
How hot can underfloor heating get with LVT?
27°C is typically the maximum; Moduleo, Quickstep and every major LVT manufacturer caps the floor at 27°C. Anything hotter discolours the floor and damages click joints. Fit a floor sensor so the thermostat reads the actual floor temperature.
Is a timber floor suitable for underfloor heating?
Engineered wood can work if the timber is specified for heat and commissioned slowly. Solid wood flooring is a different story: solid timber warps and gaps under temperature cycling, and most flooring providers void the warranty.
What tog underlay is best for underfloor heating?
A heat-rated underlay at 0.3 to 0.5 tog is the best choice. The Royale 1.8mm Thermo ProX is our default for a hard floor, for carpet you need a low-tog heat-rated underlay, not PU foam, and combined tog value must stay under 2.5.
Does underfloor heating perform under tiles?
Tile is technically one of the best floors for underfloor heating: the highest thermal conductivity of any common floor covering, highest cap at 29°C, most even heat distribution.
Is electric or water underfloor heating better?
For whole-property heat, wet underfloor heating is the better pick: lower running cost, works with every floor. For a single bathroom where build-up is tight, electric installation is the faster option. Most properties end up with a mix.
